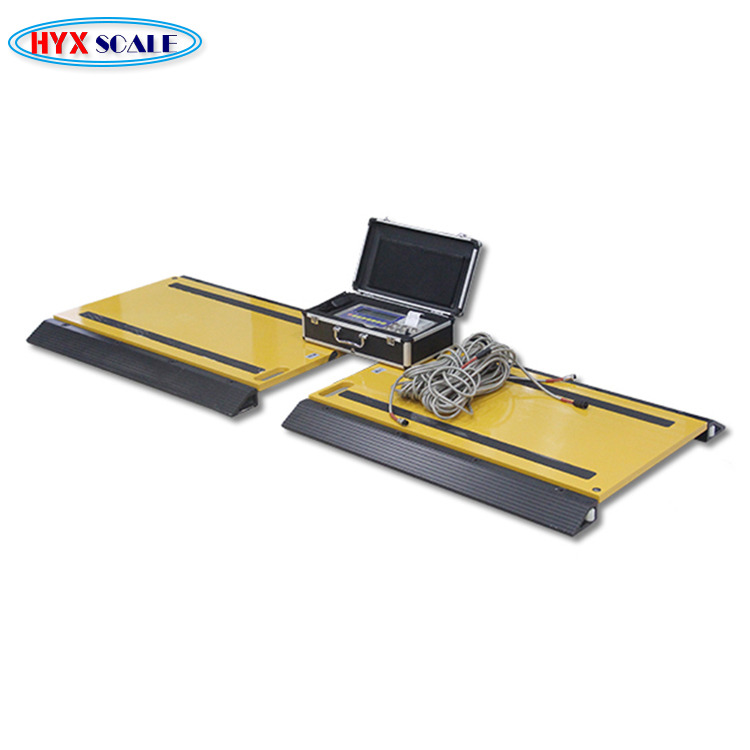

ABS + Stainless Steel China Made Vehicle Shaft Scale Portable Shaft Load Cell

20t dynamic portable truck axle load weighing scale

Description:

Ultra-low, hard aluminum alloy pad, separate design.

High strength, good repeatability.

Automatically distinguish vehicle axle model, check if vehicle is overloaded or not automatically.

Printing tickets .Pad: 2 pcs 6. Ramps: 2 rubber ramps.

weighing pads and one dynamic or static indicator combined together and the truck is no need to stop .

Note: The dimension of pads and max capacity all could be customized.

Humanized software and hardware design.

Main Parameters:
Table Size: 700mm×430mm×30mm (L×H×W)
Overall Accuracy: 3%~6%, both AC and DC power supply
Largest Monolithic Weighing: 15t
Passing Speed: <5km/h
Use two chips as a group,pass the truck scale without stopping
When single axle passes successively, the instrument displays the weight of each axle and vehicle weight
Uniaxial Largest Weighing: 30t
